配件料號(hào)：

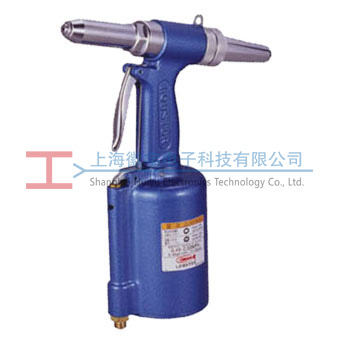

| Model No. AR 011M | |
| Code | Parts Name |
| 10027 | Nosepiece 'S' 2.4 (3/32) |
| 10028 | Nosepiece 'S' 3.2 (1/8) |
| 10029 | Nosepiece 'S' 4.0 (5/32) |
| 10030 | Nosepiece 'S' 4.8 (3/16) |
| 10105 | Frame Head 'M' |
| 10116 | Jaw Case Head |
| 10117 | Jaws 'M' |
| 10132 | Jaw Pusher |
| 10151 | O-Ring S-10 |
| 10115 | Jaw Case |
| 10133 | Jaw Pusher Spring |
| 10148 | Lock Washer |
| 10113 | Jaw Case Lock Nut |
| 10128 | O-Ring P-12 |
| 10129 | B-Ring P-12 |
| 10101 | Frame Unit (Include 11&12) |
| 14140 | Frame loose |
| 10109 | Oil Piston |
| 10130 | O-Ring P-22A |
| 10131 | B-Ring P-22A |
| 14200 | Return Spring A+B (set) |
| 10110 | Return Spring "A" (inner) |
| 10111 | Return Spring "B" (outer) |
| 10153 | O-Ring S-26 |
| 10106 | Hanger Clip |
| 10104 | Frame Cap |
| 10015 | Safety Cap |
| 10108 | Safety Cap Nut |
| 13121 | Trigger (long) |
| 10120 | Trigger Connector Rod |
| 10119 | Trigger Lever |
| 23595 | Spring Pin 3 x 7.2 |
| 10102 | Air Cylinder |
| 29736 | Bumper |
| 10144 | Spring Pin 3 x 22 |
| 10145 | Spring Pin 3 x 18 |
| 10112 | Frame Lock Nut |
| 10149 | O-Ring P-7 |
| 10123 | Valve Pusher |
| 10124 | Valve Pusher Spring |
| 10154 | Collar for Valve Pusher |
| 10150 | O-Ring P-6 |
| 10125 | Valve |
| 10126 | Valve Spring |
| 10152 | O-Ring S-14 |
| 10127 | Nipple |
| 10134 | O-Ring P-60 |
| 14168 | Air Piston Unit |
| 10080 | O-Ring G-70 |
| 10011 | Air Cylinder Cap 'M' (blue) |
| 10141 | Spanner 'A' |
| 10142 | Spanner 'B' |
| 10140 | Air Hose Joint 1/4 |
| 10139 | Air Hose Joint Nut 1/4 |
| 10012 | Hydraulic Oil |
| 00889 | JAW-LUBE (50cc in a bottle) |
